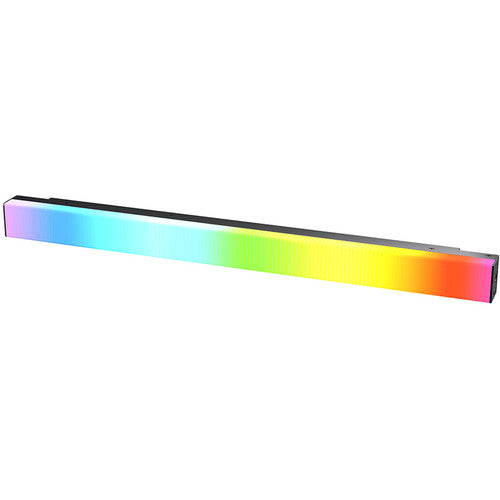

The Aputure INFINIBAR PB6 RGB LED Light Panel is a 60 cm RGBWW pixel bar featuring 48 individually addressable LEDs in a sleek aluminum housing. Designed for professional cinematography, live events, and in‑scene lighting, it supports a full CCT range from 2,000 K to 10,000 K, RGB/HSL/xy color controls, and includes over 90% coverage of Rec.2020 color space .
Equipped with built‑in effects including System FX and Pixel FX (e.g. chase lights, fireworks), the PB6 allows up to 20 custom FX, music-synced modes, and has granular control via Sidus Link, DMX/RDM via USB‑C, or LumenRadio CRMX .
With CRI ≥ 96 and TLCI ≥ 98 (also SSI ~74 & 85), the PB6 delivers broadcast-grade color fidelity. Powered by a built-in 29.6 Wh lithium-ion battery, it provides up to 100 minutes runtime at full brightness, or can be powered via included AC/DC adapters (~18 W consumption). It supports seamless linking and power sharing across multiple units in continuous arrays .
The mounting is flexible using built-in magnets, the INFINIBAR rail system, baby pin clamp, or ¼‑20″ threads. The lightweight bar weighs about 1.0 kg, or 1.13 kg with diffuser spacer, making it highly portable and set‑friendly .
Key Features:
- For Studio and Film/TV Production
- Output: 328 Lux at 3.3' (120º, 6500K)
- 2000 to 10,000K; RGB Color Control
- 23.8 x 1.8" Panel; AC/DC Operation
- CRI 96 | TLCI 98 | SSI 74 | TM-30 94
- DMX, CRMX, and Sidus Link App Control
- Passive Cooling

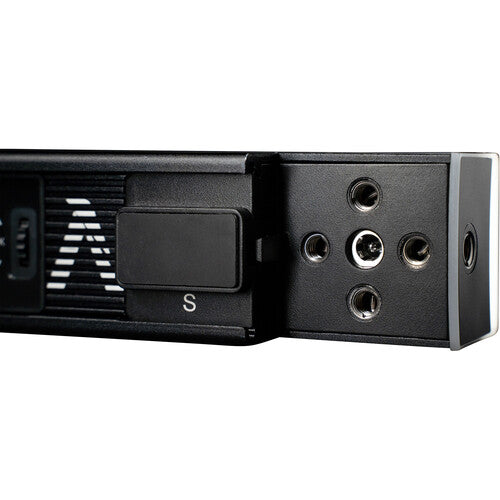

- 2 x 1/4-20" Threads, INFINIBAR Rail

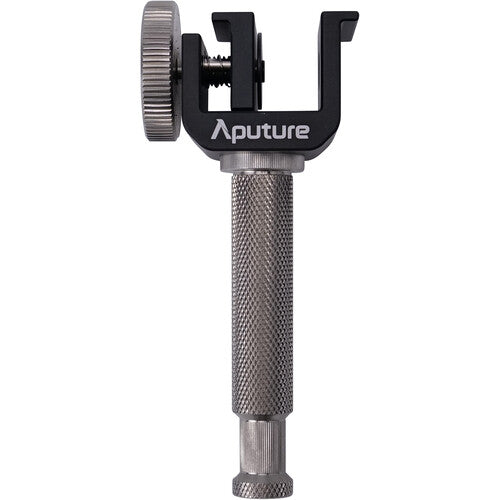

- Clamp to Baby Pin Adapter

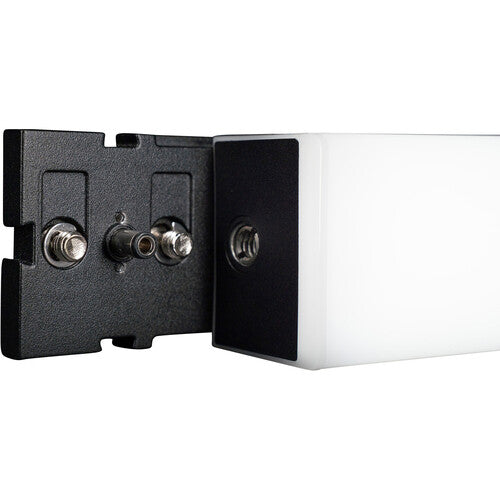

- Straight Connector Included

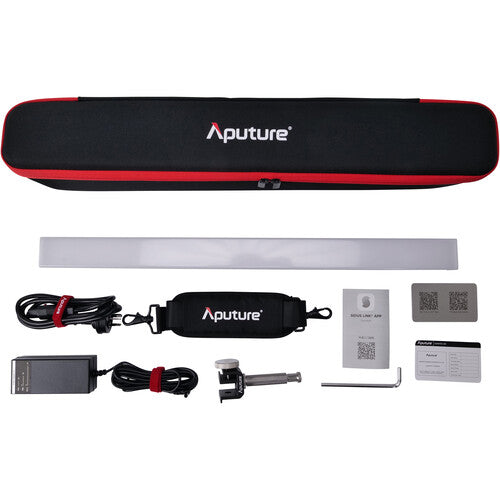

What's In The Box:
- Aputure INFINIBAR PB6 RGB LED Light Panel (2')

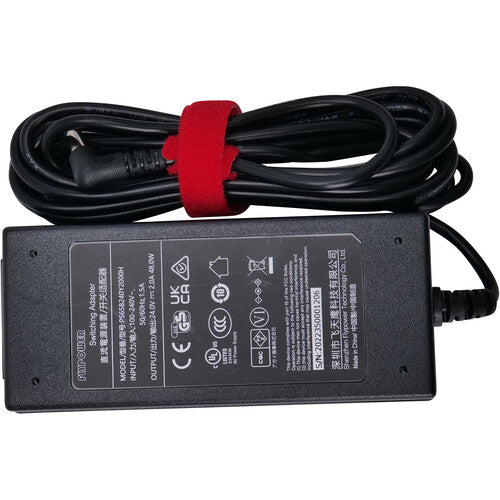

- DC Power Adapter (9.8')
- AC Locking Power Cable (4.9')
- Clamp to Baby Pin Adapter
- 2 x Magnetic Spacer
- Straight Connector
- Hex Wrench

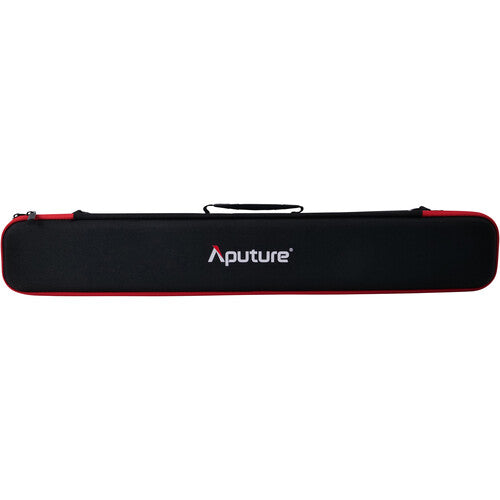

- Carrying Case
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
