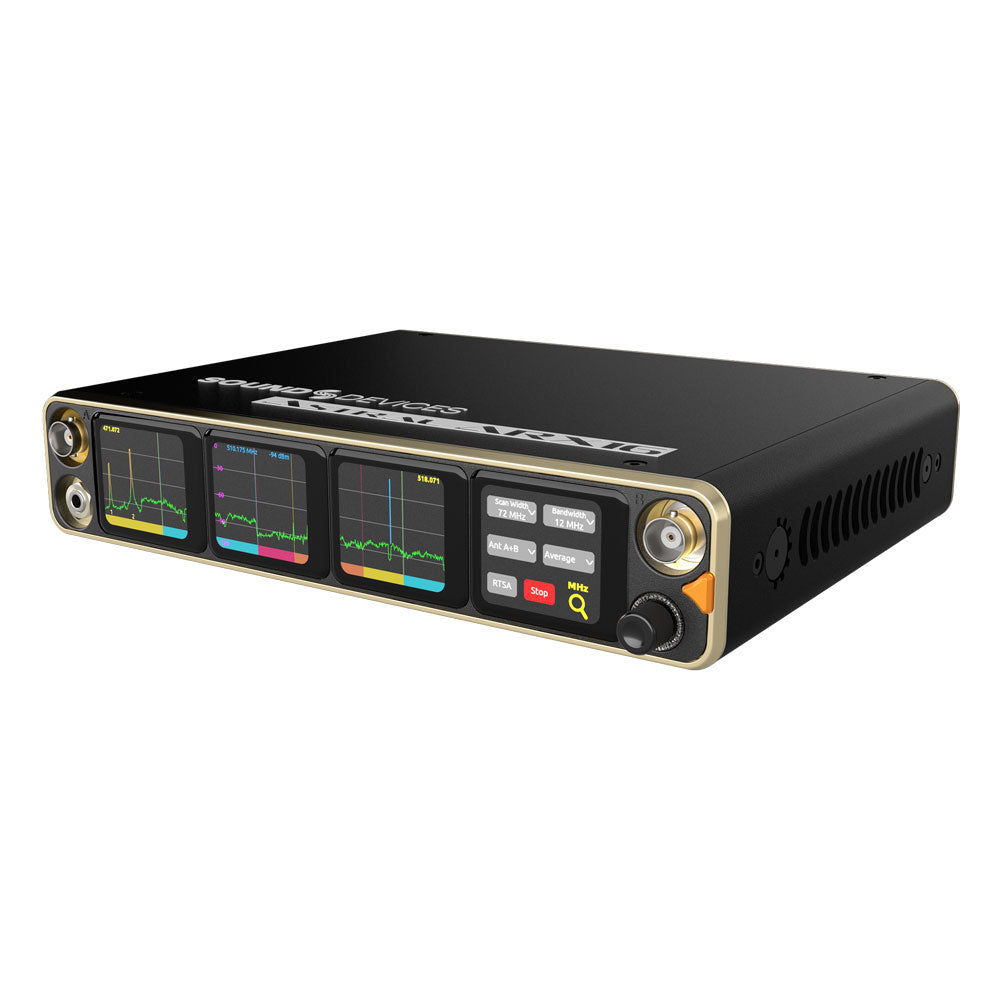

Sound Devices Astral ARX16 8-Channel Digital Wireless Receiver - A20-Nexus (On Order)

The Sound Devices Astral ARX16 8-Channel Digital Wireless Receiver (A20-Nexus) is a 8, 12, or 16-Channel True-Diversity Wireless Receiver with SpectraBand (169 to 1525 MHz).

The next-generation Astral ARX16 is expandable from 8 channels up to 12 and 16 with additional software and features forward-thinking technologies like SpectraBand, the powerful NexLink remote-control link, real time spectrum analysis, and more. With multiple options for audio outputs, powering, and remote control, the Astral ARX16 can seamlessly adapt to your workflow, both now and in the future.

SpectraBand

SpectraBand technology delivers a tuning range of 169 – 1525 MHz in a single unit – an industry first! Experience ultimate flexibility as you find open spectrum away from the crowded UHF TV band

NexLink

With NexLink’s advanced long distance protocol, you can control your Astral Mini and Astral TX transmitters using the built-in long range remote control link. 

Network away

Use the built-in web server with any computer, tablet, or phone to control the Astral ARX16 wherever your ethernet cable can take you. Power the receiver from a distance using Power-over-Ethernet (PoE) and remotely deliver audio via Dante. The possibilities are boundless.

GainForward

With the Astral transmitters’ GainForward Architecture, easily set the gain, low-cut, and limiter directly on your Astral ARX16 or mixer-recorder. This immediate, local control of gain means never having to adjust the gain on the transmitter again.

AutoAssign

With the Astral ARX16 true diversity wireless receiver’s AutoAssign function it automatically scans the current tuning band for clean frequencies and assigns them to multiple channels. The clean frequencies are then automatically pushed to transmitters linked to the NexLink protocol.

Key Features:

• 8-channel ultra-high-performance, true-diversity receivers in a ½ rack size (8.0” x 6.6” x 1.6”).
• Expandable to 12 or 16 channels via Astral ARX16 4-Channel Expansion License.
• 169 MHz – 1525 MHz tuning range via SpectraBand Technology.
• NexLink: an advanced long-distance modulation that allows for remote control of wireless transmitters from the receiver.
• Dante audio-over-IP of RF receiver audio.
• Flexible powering: via PoE+, DC input, 8-Series, or AC mains (with optional adapter).
• Web App control from browser on any computer, smartphone or tablet.
• Full remote operation capability: Power via PoE, audio via Dante, control via Web App.
• Dual DB-25 connectors for 16 channels of mic, line, or AES outputs
• Convert 16 channels of Dante to analog and/or AES on DB25 connectors, for sending IFB, voice-of-god, and more from mixer to set.
• Wide, 6.2” color OLED array with touch for control and monitoring.
• Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
• Optical Fiber Network option via SFP slot. SFP accepts a wide variety of modular network transceivers.
• Astral-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools.
• The AutoAssign function automatically scans the current tuning band for clean frequencies and assigns them to multiple channels. The clean frequencies are automatically pushed to NexLinked transmitters.  
• Modular design: RF section (Astral ARX16) can be disconnected and remoted from 8-Series, as opposed to less-flexible integrated RF/Mixer/Recorder solutions.
• All NexLink control is handled by Astral ARX16 and/or its Web App instead of the 8-Series for maximum flexibility.
• Full remote power-down: Astral TX, HH, and Mini transmitters can be fully powered down via NexLink for excellent battery life. This alleviates the need for remote auto-RF-Power adjustment schemes. User is in full control of RF power settings.
• Supports GainForward Architecture: No gain setting on the Astral transmitters. Adjust gain at the receiver or mixer.
• 100% digital long-range modulation delivers the longest transmission distance of any system on the market. 
• Excellent audio quality, full 10 Hz – 20 kHz audio bandwidth.
• RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
• BNC timecode input for auto timecode sync of transmitters over NexLink.
• On-the-fly audio output routing changes directly from the Astral HH and Astral TX. Ideal for talkback, guitar tuning etc.
• Wireless transmitter pairing to Astral receivers in addition to pairing via USB cable
• Ad-hoc handoff of transmitters’ NexLink control between Astral receivers; ideal for large reality shows
• Astral ARX16 digital audio outputs increased (Dante) to 32 channels
• Flexible tone routing matrix.

What's In The Box:

• Sound Devices Astral ARX16 8-Channel Digital Wireless Receiver (169 to 1525 MHz)
• 2 x Sound Devices A20-Monarch Wideband Omnidirectional Antenna (470 to 1600 MHz)
• 2 x Sound Devices SMA Antenna for A20-Nexus (Pair, 2.4 GHz)
• 2 x Articulating Arm Mounts
• 2 x BNC – BNC Cables (75cm)
• Limited 1-Year Manufacturer Warranty (Extends 1 Additional Year upon Product Registration)
