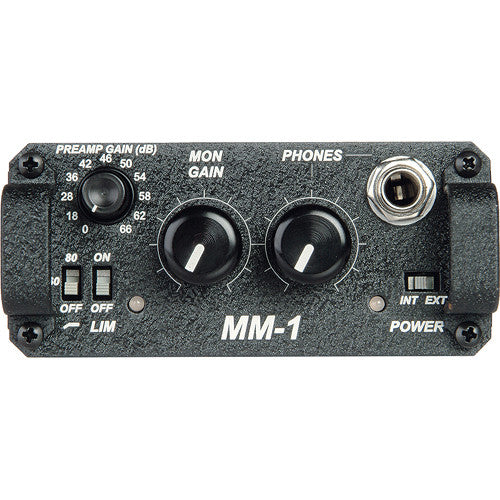

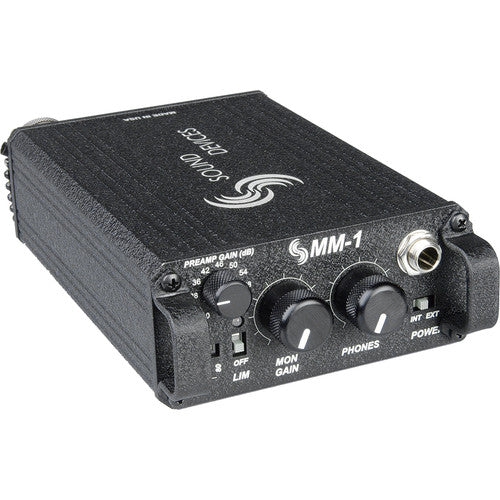

Sound Devices MM-1 (High Quality Mic Preamp with Headphone Monitor) Custom order

The Sound Devices MM-1 is at home in high-definition television production, corporate/industrial environments, radio/television announce booths, and music production. Its headphone monitor is an advantage in applications where communications channels or mix-minus feeds need to be monitored in headphones. The user can monitor both microphone audio and external audio sources in headphones with level control.

The MM-1 is designed to be durable. Its aluminum chassis, oversized end panels, machined knobs, and panel mounted connectors assure reliable mechanical operation.

Key Features:

• Maximum of 66 dB of gain, in eleven discrete steps
• Dynamic range exceeding 120 dB
• 10 Hz to 50 kHz audio bandwidth
• High immunity to RF interference
• High current line output driver
• Transformer-balanced input and output
• Extended range peak limiter via dual opto-isolators makes preamplifier virtually “unclippable”
• Selectable 48-volt / 12-volt phantom power or 12-volt “T” power
• High-pass filter @ 80 or 160 Hz, 6 dB per octave
• Headphone monitoring of microphone audio, monitor audio, or a mix of both
• Monitor input accepts mono, balanced or unbalanced line-level inputs on 1/4-inch tip-ring-sleeve connector
• Separate level control of Monitor gain and overall headphone gain
• Split ear function via DIP switches
• Internal battery power (two-AA)
• Excellent battery life with alkaline and NiMH rechargeable batteries
• External 5-17 VDC powering
• High-strength aluminum chassis with durable belt clip

Battery-powered microphone preamplifier with headphone monitoring. 48 V phantom and T-power, limiter, high-pass filter. 2-AA or external DC powered.

What’s in the box:

• MM-1 Mic Preamp
• Coaxial female power connector
• 4 Adhesive rubber “bumpers”
