Sound Devices USBPre 2 (Custom order)

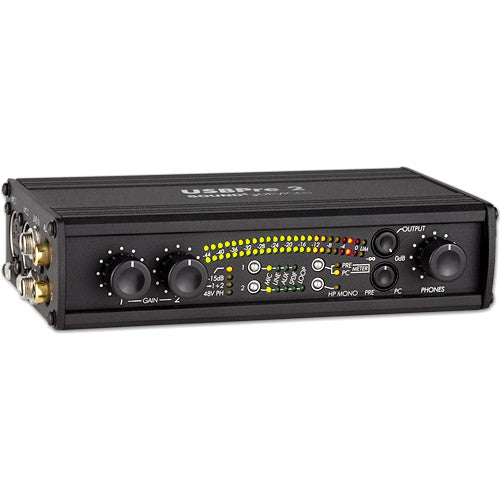

The Sound Devices USBPre 2 is a high-resolution, portable hardware interface for Mac- and Windows-based digital audio. The USBPre 2 is the industry’s highest performance and most flexible portable interface, connecting professional microphones, line-level sources, consumer audio electronics, and S/PDIF digital sources with Mac OS and Windows computers via USB.

Precision Microphone Preamplifiers

The USBPre 2 includes two discrete-transistor microphone preamps with 24-bit converters and sampling rates up to 192 kHz. These preamplifiers provide the highest performance in any portable interface. Their topology is shared with Sound Devices’ award-winning 744T Digital Audio Recorder. Peak limiters, high-pass filters, and a 15 dB pad provide overload protection. All analog-to-digital and digital-to-analog conversion is performed by the USBPre 2 for superior audio performance.

• Extended bandwidth, low-noise microphone preamplifiers with 48 V phantom, limiters, high-pass filters, and 15 dB pad.
• Dynamic range greater than 114 dB (in 24-bit operation).
• Flat 10 Hz to 40 kHz (@96 kHz SR) audio bandwidth with very low distortion characteristics.
• Each input individually selectable between microphone, line, and aux level signals (both channels selected simultaneously for S/PDIF connections).
• Precision, 23-segment, multicolor LED peak/VU meter, selectable between input and output sources.
• High-output headphone amplifier can drive a wide range of headphones.

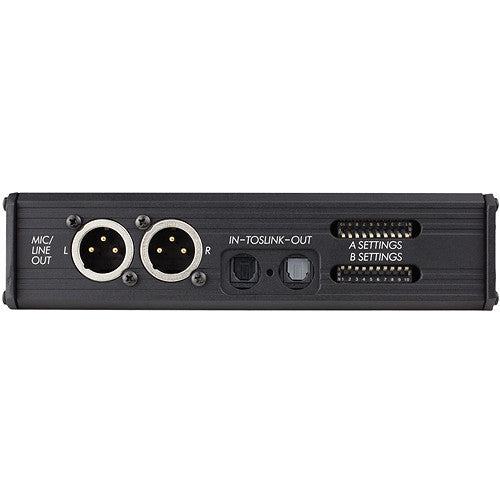

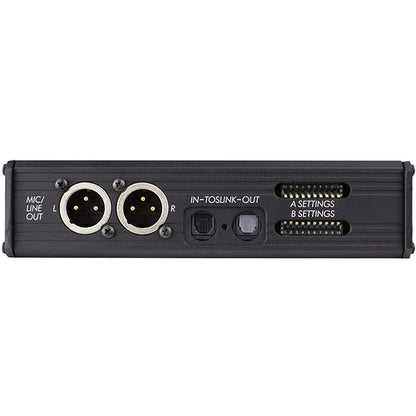

• Balanced outputs on XLR connectors with dedicated level control can be used to drive line- or mic-level inputs.
• Mix control enables zero-delay monitoring of source audio, computer audio, or a mix of both source and computer audio for multitrack recording or computer telephony.
• Phono (RCA) jacks connect Aux Output to external loudspeakers or preamplifiers.
• Bus powering via USB for convenient, single-cable connection to the computer.
• In Stand-Alone mode the USBPre 2 operates as a microphone preamplifier and analog-to-digital converter.
• Hardware loop-through for test and measurement to send computer audio directly back to an input.
• High-strength extruded aluminum chassis.
• Mac® OS X 10.4+, Windows®XP/Vista/7, and Linux, class-compliant audio device.
• Additional features controlled by hardware DIP switches on the back panel; no software-only features and no control panel.

What’s in the box:

• USBPre 2 computer audio interface
• 2-meter USB A to USB B Cable
• 4 Adhesive Rubber “Bumpers”
