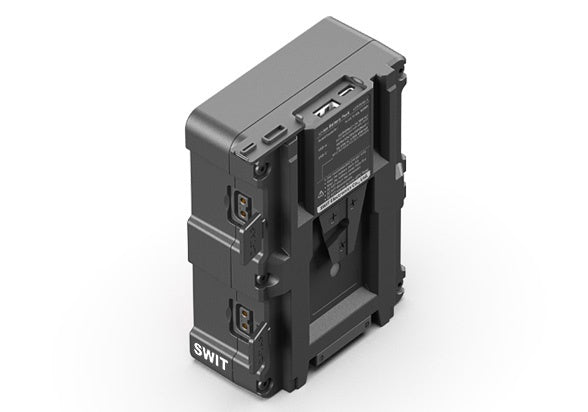

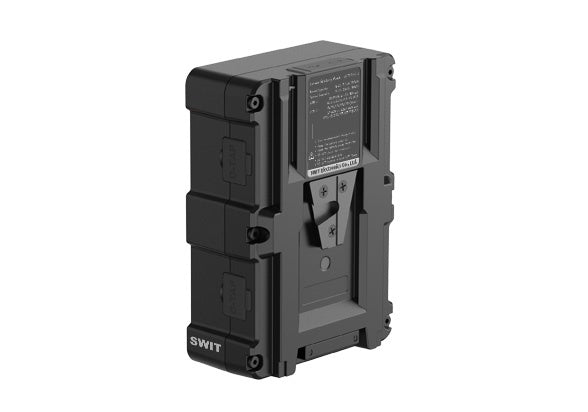

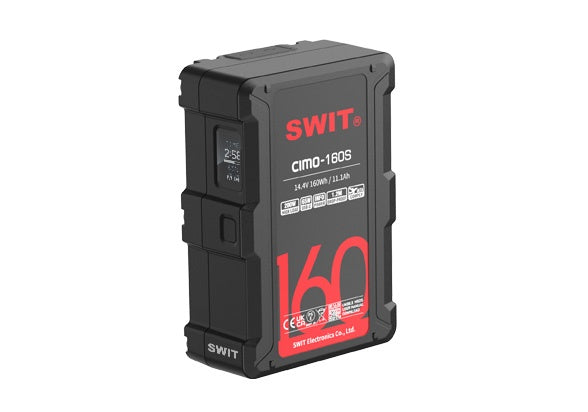

The SWIT CIMO-160S consists of 16pcs ternary lithium cells, 14.4V nominal voltage, 160Wh, 11.1Ah large capacity. The ternary lithium cells provide higher energy density, achieve higher capacity with a smaller size, and excellent low-temperature performance, capable of supplying power under -20°C cold environment.
The CIMO-160S outputs at least 200W/16A high load even at 1% capacity (Peak load up to 270W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.
The CIMO-160S supports 100W/6A fast charging by SWIT PC-P461S / MATRIX-S8 / S-3812S chargers, twice the charging speed, and the 6A fast charging will not affect the lifespan of ternary lithium cells.
The 160Wh battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.
