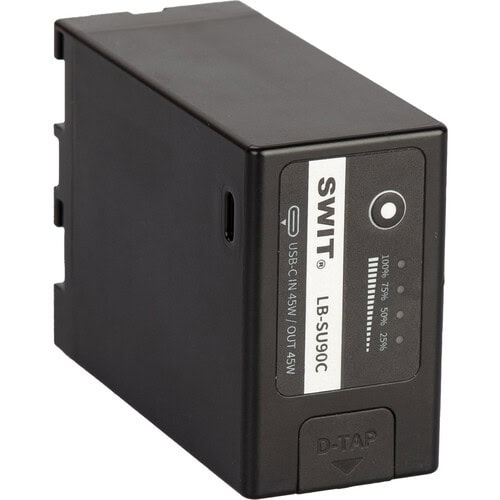

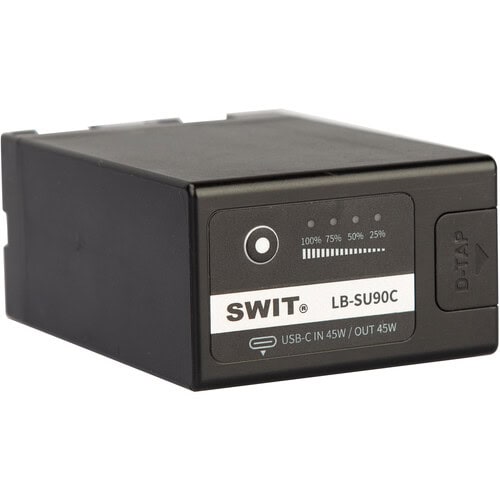

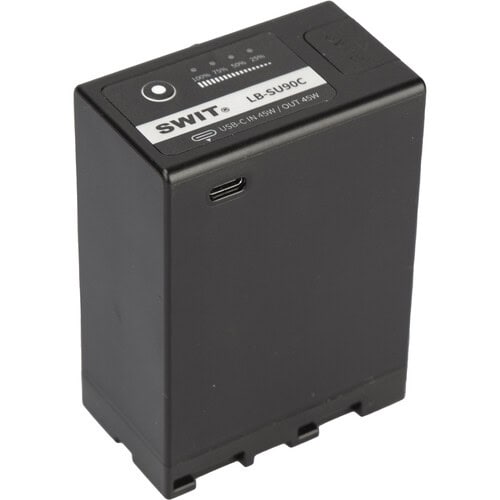

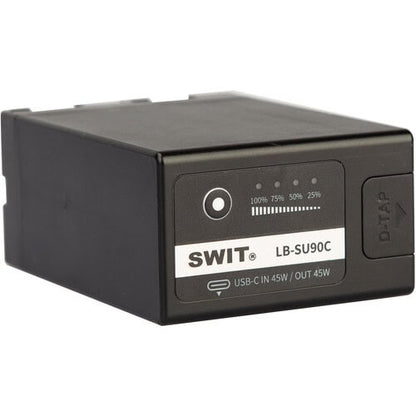

SWIT LB-SU90C (SONY BP-U Series Battery Pack)

The SWIT LB-SU90C is a new 90Wh large capacity BP-U type DV battery with D-tap output and 45W USB-C in/out, for SONY PXW FS5/FS7, PXW-FX6/FX9,  PXW-Z200,  HXR-NX800, PXW-Z280/X280, Blackmagic PYXIS 6K, etc.

90Wh Large Capacity

LB-SU90C consists of 8pcs battery cells, 14.4V nominal voltage, 90Wh/6200mAh large capacity to keep cameras powered for longer time. The constant power load is 70W/6A.

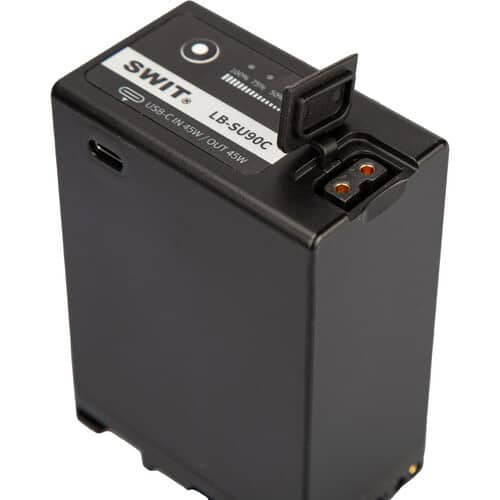

14.4V D-tap Power Socket

The LB-SU90C BP-U battery provides a D-tap power socket of 11-16.8V voltage, 70W/6A high load for various kinds of video devices. You can also charge the battery via the D-tap socket by SWIT PC-U130B2.

USB-C 45W for Laptop

LB-SU90C provides a USB-C socket of 5V/9V/12V/15V/20V(Max) 2.25A, 45W power output for various kinds of laptops, tablets or smart phones, supports BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.

USB-C 45W Charging Input

You can also charge LB-SU90C by USB-C charger. Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W power input, which means you can fully charge the 90Wh battery within 3 hours.

4-level Power Indicator

Press the power check bottom, the 4-level LEDs indicate remaining power percentage.

4-way Charging

LB-SU90C can be charged by SWIT S-3602U 2-way charger, SWIT PC-U130B2 D-tap charger, or LC-D421 4-way charger. By the LC-D421, You can charge 4 batteries simultaneously, and fully charging within 3.5 hours.

Key Features:

• 14.4V nominal voltage Li-ion battery
• Compatible with SONY BP-U batteries
• Display power info in camera (some new models)
• 90Wh / 6.2Ah capacity
• Built-in 14.4V D-tap output/Charging input
• Built-in 45W USB-C input and output
• 4-level LED power indicator
• Multiple circuit protections
• Compatible with  Blackmagic PYXIS 6K
